[HWN-2104MH(STD)(C)] HIKVISION HWN-2100 Series Network Video Recorder H265+ HDMI 4CH Video 1080P 6MP 60Mbps SATA

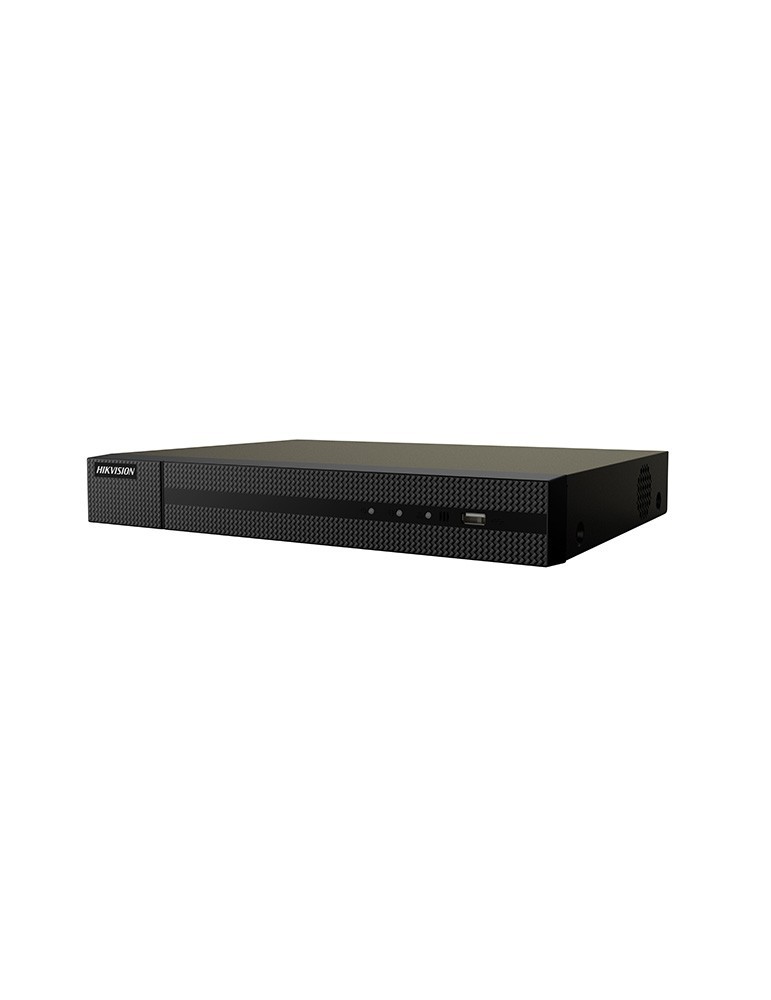

[HWN-2104MH(STD)(C)] HIKVISION HWN-2100 Series Network Video Recorder

  • H.265/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output
  • 4CH Video 1080P 6MP 60Mbps SATA
HWN-2104MH(STD)(C)
This product is available with a high level of stock
HIKVISION
  • NVR Recorder x1
  • Network cable 1.5M x1
  • SATA power cable x1
  • quick guide x1
  • Screws for HDD x4
  • SATA data cable x1
  • AC/DC adapter x1
  • Mouse x1

Video/Audio input
IP video input 4-ch
Up to 6 MP resolution
Network
Incoming bandwidth 40 Mbps
Outgoing bandwidth 60 Mbps
Remote connection 16
Video/Audio output
Recording resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI output resolution 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output resolution 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output Decoding
Decoding
Decoding format H.265+/H.265/ H.264+/H.264
Live view/Playback resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 4-ch
Decoding Capability 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps)
Stream type Video, Video & Audio
Network management
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Camera protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Hard Disk
SATA 1 SATA interface
Hard Disk Capacity Up to 6TB capacity for each disk
External interface
Network interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
USB interface 2 × USB 2.0
General
Power supply 12 VDC
Power ≤ 18 W
Consumption(without hard disk) ≤ 10 W
Working temperature -10 to +55º C (+14 to +131º F)
Working humidity 10 % to 90 %
Chassis 1U chassis
Dimensions(W × D × H) 260 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight ≤ 1 kg (2.2 lb)
HWN-2104MH(STD)(C)

Data sheet

Material
Metal
Discs
1
Decoding Capability
4-ch @ 1080P
Video Inputs
4
